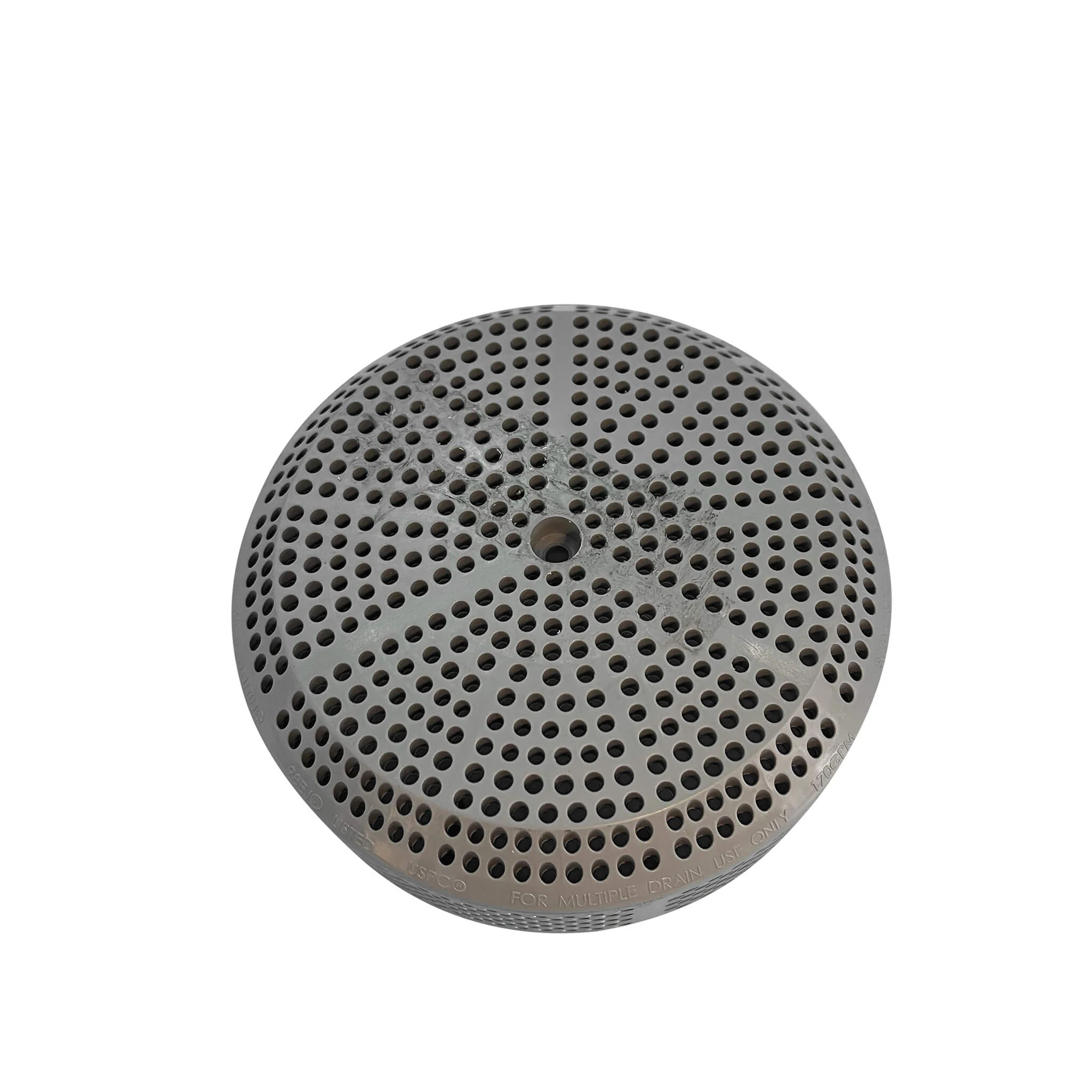

6540-564 – OEM Jacuzzi® suction fitting, grate suction, used in select Jacuzzi® J-LX™, J-500™, J-400™, J-300™, J-200™, and J-100™ models manufactured from 2004 to Present.

Compatible with the following Jacuzzi® models:

Compatible J-LX™, J-500™, J-400™ Models:

• Jacuzzi® J-LX™, J-500™, J-400™ (2006–5/9/2023)
• Jacuzzi® J-LX™, J-500™, J-400™ (5/10/2023–Present)

Compatible J-300™ Models:

• Jacuzzi® J-300™ (2004–5/9/2023)
• Jacuzzi® J-300™ (5/10/2023–Present)

Compatible J-200™, J-100™ Models:

• Jacuzzi® J-200™ (2005–5/9/2023)
• Jacuzzi® J-100™ (2017–5/9/2023)
• Jacuzzi® J-200™, J-100™ (5/10/2023–Present)

Subtype	Grate Suction
Port Size	2"
Material	ABS

Other compatible or related components:

• View: Suction Fitting: Spa Drain Cover – Jacuzzi® J-300, J-200, J-100 (2004–2008) – 6540-213
• View: Suction Fitting: Filter Fill – Jacuzzi® J-400 and J-300 Series (2002–Present) – 6540-329
• View: Suction Fitting: Wall with Strainer – Jacuzzi® J-300 Series (2002–2024) – 6540-751
• View: Suction Fitting: 3/4" Barb x 1/2" Spigot – Jacuzzi® J-300 Series (2002–2024) – 6540-085
• View: Suction Fitting: Wall with High Flow Strainer – Jacuzzi® J-LX, J-500, J-400, J-300 (2002–2024) – 6540-126
• View: Suction Fitting: 2" Spigot x 1/2" Slip – Jacuzzi® J-300 Series (2002–2024) – 6540-241
• View: Suction Fitting: 2.85" O-Ring – Jacuzzi® J-200, J-300, J-400 (2006–Present) – 6540-984
• View: Suction Fitting: 8-32 x 12mm Screw – Jacuzzi® J-LX, J-500, J-400, J-300, J-200, J-100 (2002–Present) – 6000-564
