Jet: IX Jet – Jacuzzi J-400 Series (2013–2015)

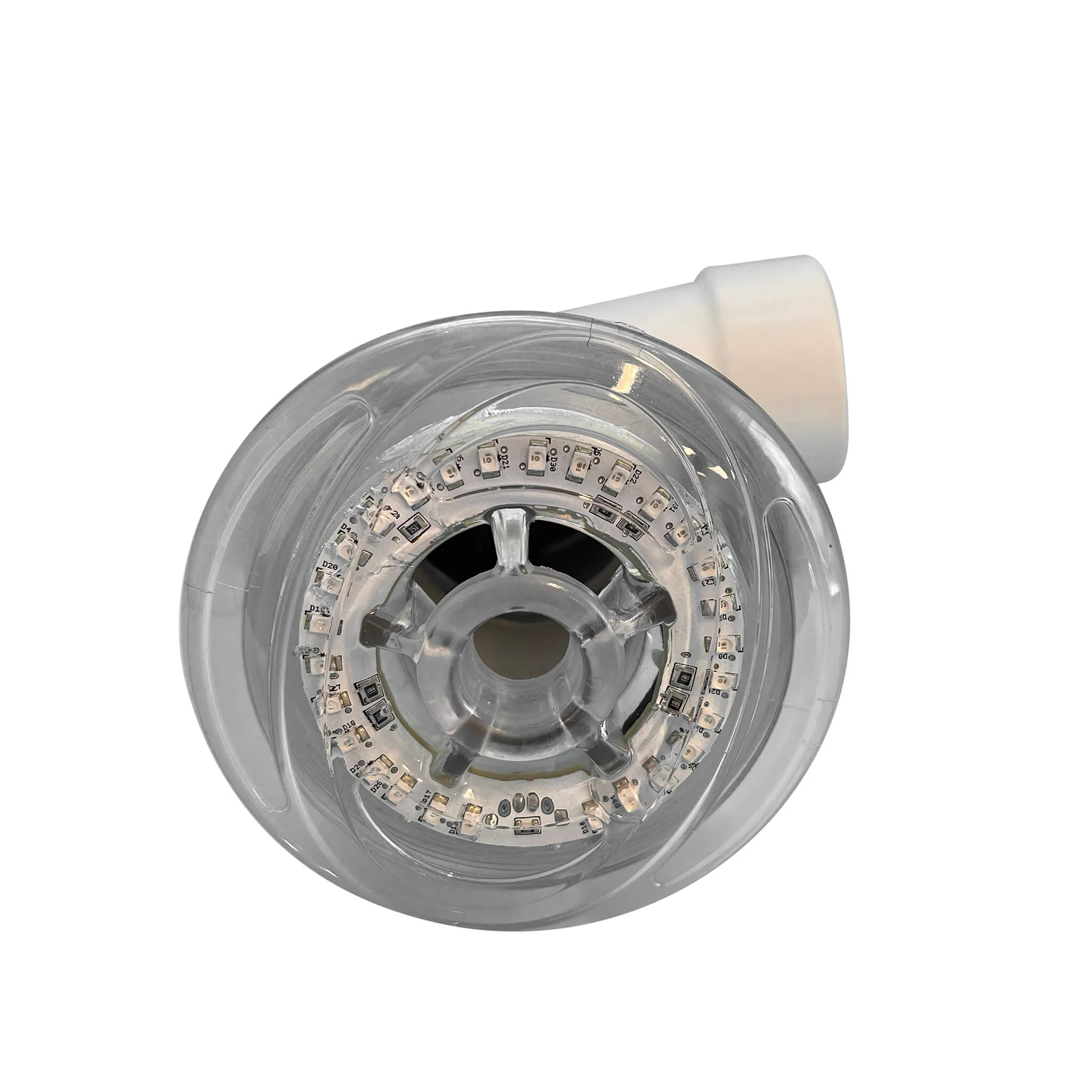

6560-103 – OEM Jacuzzi® IX Jet Face Assembly with multi-color LED light and mini-DIN connector, used in select Jacuzzi® J-400™ Series models manufactured from 2013–2015.
Compatible with the following Jacuzzi® models:
- Jacuzzi® J-445™, J-435™ (10/2017–2018)
- Jacuzzi® J-485™, J-475™, J-445™, J-435™ (2019+)
- Jacuzzi® J-470™, J-465™, J-425™ (2013–2014)
- Jacuzzi® J-465™ (2012)
- Jacuzzi® J-400™ Series (2006–2012)
| Subtype | IX Jet |
|---|---|
| Jet Series | PowerProâ„¢ |
| Mount Style | Mini-DIN Connector |
| Dimensions | 3.312" ID × 0.21" Ø (2 required) |
| Part # | Description | |
|---|---|---|
| 1A | 6560-970 | Jet Face: Assembly IX Jet w/ Multi-Color LED Light And Mini-DIN Connector for 12V Balboa controllers ONLY. Not compatible with older systems |
| 1B | 6560-103 | Jet Face: Assembly IX Jet w/Multi-Color LED Light And Mini-DIN Connector |
| 2 | 6540-520 | O-Ring: Double EDPM, 3.312" ID x 0.21" Ø (2 Req'd.) |
| 3 | 6540-861 | Nut: T-Valve |
| 4 | 6540-443 | Nut: Serviceable Light |
| 4 | 6540-390 | Pipe: Rigid PVC, 2" (Sold By The Foot) |
| 5 | 20178-001 | Venturi Tee: 1-1/2" Spigot x 2" Slip x 3/4" Barb |
Other compatible or related components:
- View: Jet: IX Jet – Jacuzzi® J-400 Series (2013–Present) – 6560-970
- View: Jet: IX Jet Face Assembly – Jacuzzi® J-445 & J-435 (2017–2018) – 6541-013
- View: Jet: Venturi Tee – Jacuzzi® J-400 (2006–Present) – 20178-001
- View: Jet: O-Ring – Jacuzzi® J-400 Series (2006–2024) – 6540-520
- View: Jet: Rigid PVC Pipe – Jacuzzi® J-400 Series (2010–2024) – 6540-390
6560-103 – OEM Jacuzzi® IX Jet Face Assembly with multi-color LED light and mini-DIN connector, used in select Jacuzzi® J-400™ Series models manufactured from 2013–2015.
Compatible with the following Jacuzzi® models:
- Jacuzzi® J-445™, J-435™ (10/2017–2018)
- Jacuzzi® J-485™, J-475™, J-445™, J-435™ (2019+)
- Jacuzzi® J-470™, J-465™, J-425™ (2013–2014)
- Jacuzzi® J-465™ (2012)
- Jacuzzi® J-400™ Series (2006–2012)
| Subtype | IX Jet |
|---|---|
| Jet Series | PowerProâ„¢ |
| Mount Style | Mini-DIN Connector |
| Dimensions | 3.312" ID × 0.21" Ø (2 required) |
| Part # | Description | |
|---|---|---|
| 1A | 6560-970 | Jet Face: Assembly IX Jet w/ Multi-Color LED Light And Mini-DIN Connector for 12V Balboa controllers ONLY. Not compatible with older systems |
| 1B | 6560-103 | Jet Face: Assembly IX Jet w/Multi-Color LED Light And Mini-DIN Connector |
| 2 | 6540-520 | O-Ring: Double EDPM, 3.312" ID x 0.21" Ø (2 Req'd.) |
| 3 | 6540-861 | Nut: T-Valve |
| 4 | 6540-443 | Nut: Serviceable Light |
| 4 | 6540-390 | Pipe: Rigid PVC, 2" (Sold By The Foot) |
| 5 | 20178-001 | Venturi Tee: 1-1/2" Spigot x 2" Slip x 3/4" Barb |
Other compatible or related components:
- View: Jet: IX Jet – Jacuzzi® J-400 Series (2013–Present) – 6560-970
- View: Jet: IX Jet Face Assembly – Jacuzzi® J-445 & J-435 (2017–2018) – 6541-013
- View: Jet: Venturi Tee – Jacuzzi® J-400 (2006–Present) – 20178-001
- View: Jet: O-Ring – Jacuzzi® J-400 Series (2006–2024) – 6540-520
- View: Jet: Rigid PVC Pipe – Jacuzzi® J-400 Series (2010–2024) – 6540-390
